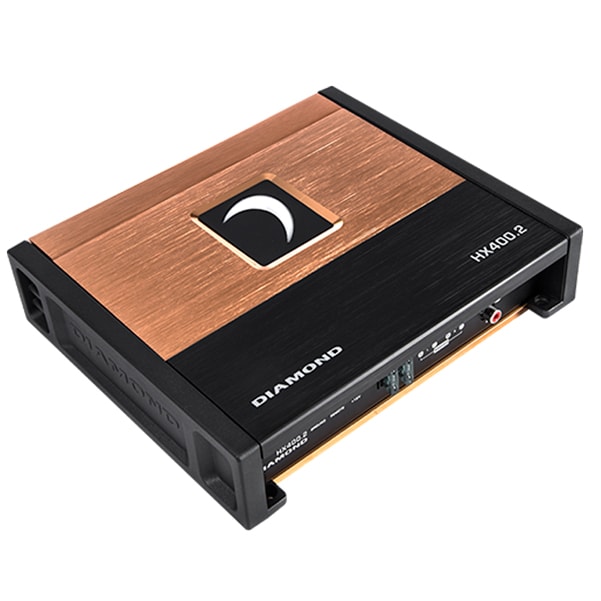

The Diamond Audio HX400.2 2 Channel Amp rated at 400 watts RMS is PERFECT for the audio perfectionist that needs clean power to a set of speakers.
- Anodized extruded aluminum heat sink provides superior thermal stability
- Four layer, glass epoxy circuit board for enhanced performance and reliability
- Audiophile grade high-tolerance components used throughout
- Full Range Class D amplifier technology
- Bridgeable for high power operation
- Balanced differential inputs for superior noise rejection
- Output clip indicators for precise system set-up
- Fully variable, 24dB per octave, electronic crossover
- Adjustable Bass EQ (45Hz: 0dB to +12dB) / remote level control included

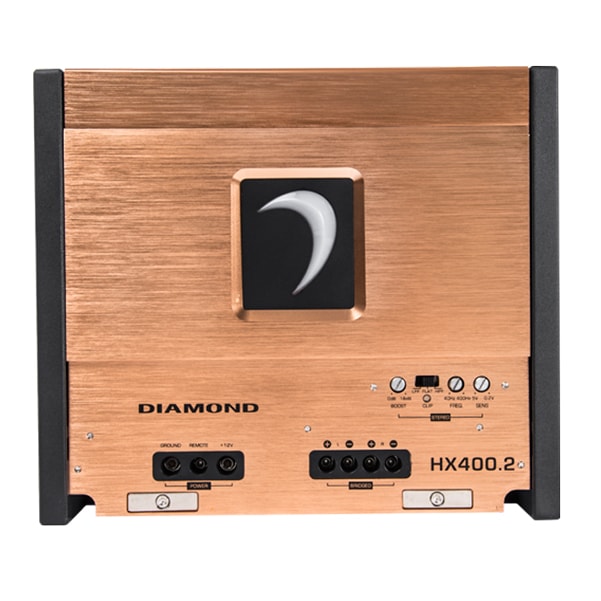

- Top mounted controls for convenient adjustment
- Illuminated logo / fully concealed mounting
Diamond Audio HX400.2 Owner's Manual
Specs
-
RMS Power Rating
- RMS Power (4Ω): 200 W X 2
- RMS Power (2Ω): 350 W X 2
- Bridged(mono 4Ω): 700 W X 1
- Bridged(mono 2Ω): N/A
- Bridged(stereo 4Ω): N/A
-
Type
- Topology: Full Range Class D
-
Power Supply
- Power Supply: Full PWM
- Power Supply Threshold: 10.0VDC-17.0VDC
- Idle Current: (0.7A)
-
Distortion
- THD 4(1KH@4Ω) : 0.06%
- S/N Ratio(A weighted@1W): -80dBA
- S/N Ratio(A weighted@FP): -95dBA
-
Input Sensitivity
- Low Input Level: 200mV-5.0V
- High Input Level: N/A
-
Input Impedance
- Low Input Level: 20 KΩ
- High Input Level: N/A
-
Output Stage
- Output Impedance: 0.011 Ω
- Damping Factor(50Hz@4Ω): >250
- Bandwidth(-3dB): 10Hz-35KHz
-
Crossover(-12dB/Oct)
- Variable High-Pass: 40Hz-400Hz
- Variable Low-Pass: 40Hz-400Hz
- Variable Sub-Sonic: N/A
-
Fuse Ratings
- ATC: 25A X 2
-
Dimensions
- Length x Width x Height(Inches): 8.75" X 6.8" X 2"
- Length x Width x Height(mm): 222 x 195 x 51.5
