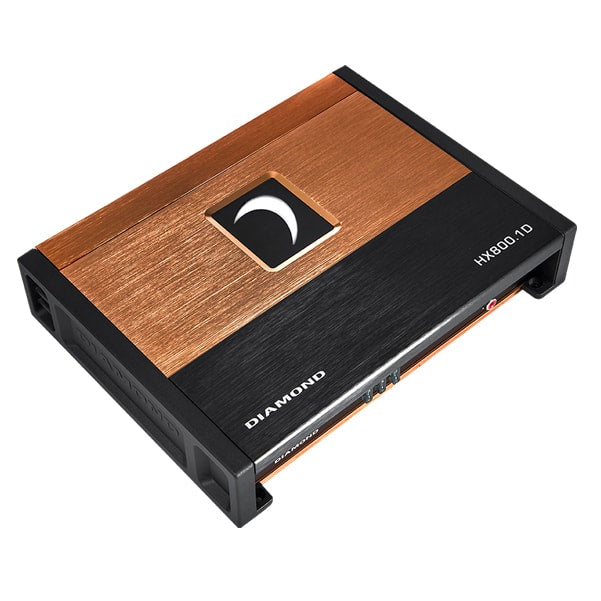

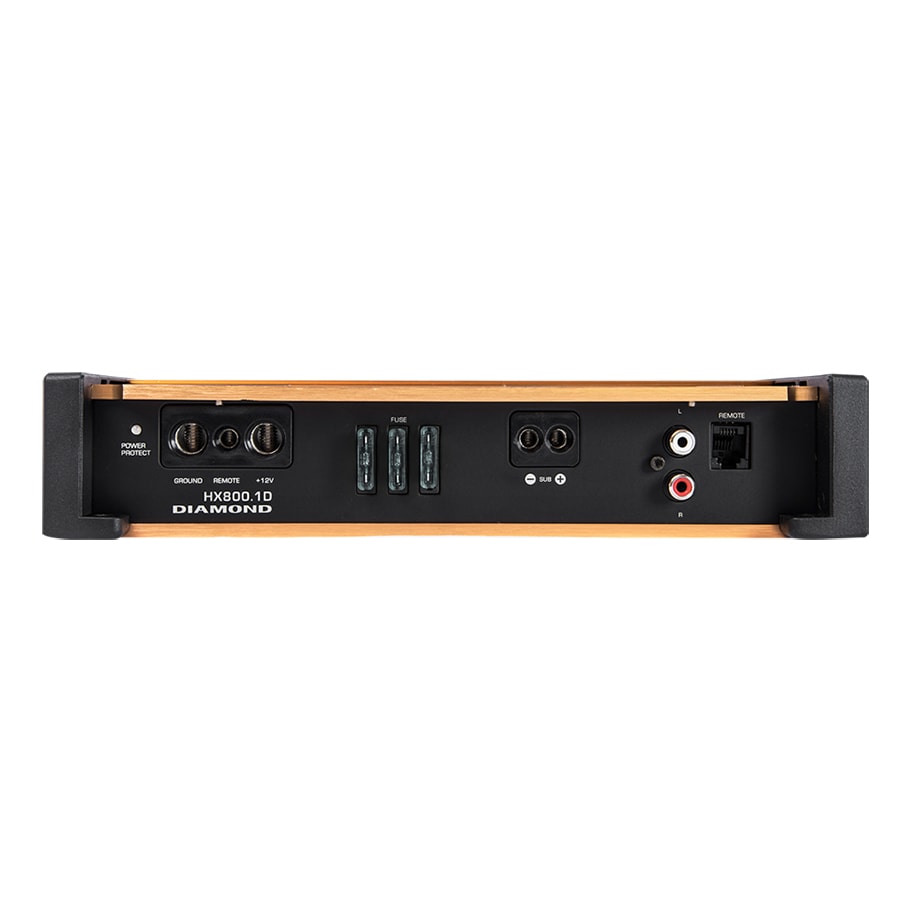

Diamond Audio HX800.1D 800 Watt 1 Channel Amp

The Diamond Audio HX800.1D Mono Block Amp rated at 800 watts RMS is specifically designed for the system that needs extreme power. This amp will push any subwoofer you give it, and it'll do it all while staying cool

• Anodized extruded aluminum heat sink provides superior thermal stability
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Audiophile grade high-tolerance components used throughout
• Class D amplifier technology
• Balanced differential inputs for superior noise rejection
• Output clip indicators for precise system set-up
• Fully variable, 24dB per octave sub-sonic filter
• Variable 18dB per octave, electronic crossover
• Phase adjustable from 0 to 180 degrees
• Adjustable Bass EQ (45Hz: 0dB to +12dB) / remote level control included
• Top mounted controls for convenient adjustment
• Illuminated logo / fully concealed mounting

Diamond Audio HX800.1D Amp Owner's Manual

Specs

• RMS Power Rating
  • RMS Power (4Ω): 340 W RMS
  • RMS Power (2Ω):  560 W RMS
  • RMS Power (1Ω): 800 W RMS

• Type
  • Topology: Class D

• Power Supply
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC-17.0VDC
  • Idle Current: (0.7A)

• Distortion
  • THD 4(1KH@4Ω) : 0.01%
  • S/N Ratio(A weighted@1W): -80dBA
  • S/N Ratio(A weighted@FP): -95dBA

• Input Sensitivity
  • Low Input Level: 200mV-5.0V
  • High Input Level: N/A

• Input Impedance
  • Low Input Level: 20 KΩ
  • High Input Level: N/A

• Output Stage
  • Output Impedance: 0.011 Ω
  • Damping Factor(50Hz@4Ω): >250
  • Bandwidth(-3dB): 10Hz-300Hz

• Crossover(-12dB/Oct)
  • Variable High-Pass: N/A
  • Variable Low-Pass: 30Hz-300Hz
  • Variable Sub-Sonic: 10Hz-55Hz@12dB

• Fuse Ratings
  • ATC: 30A X 3
